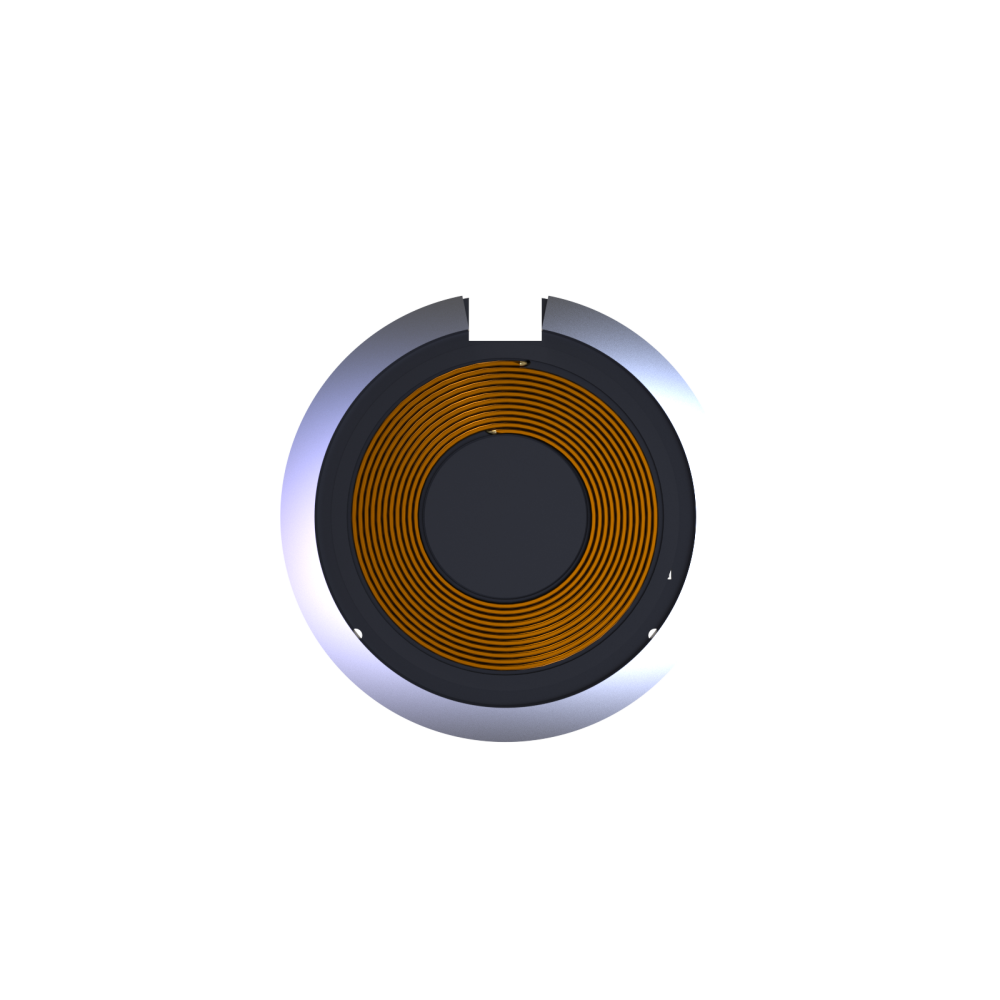

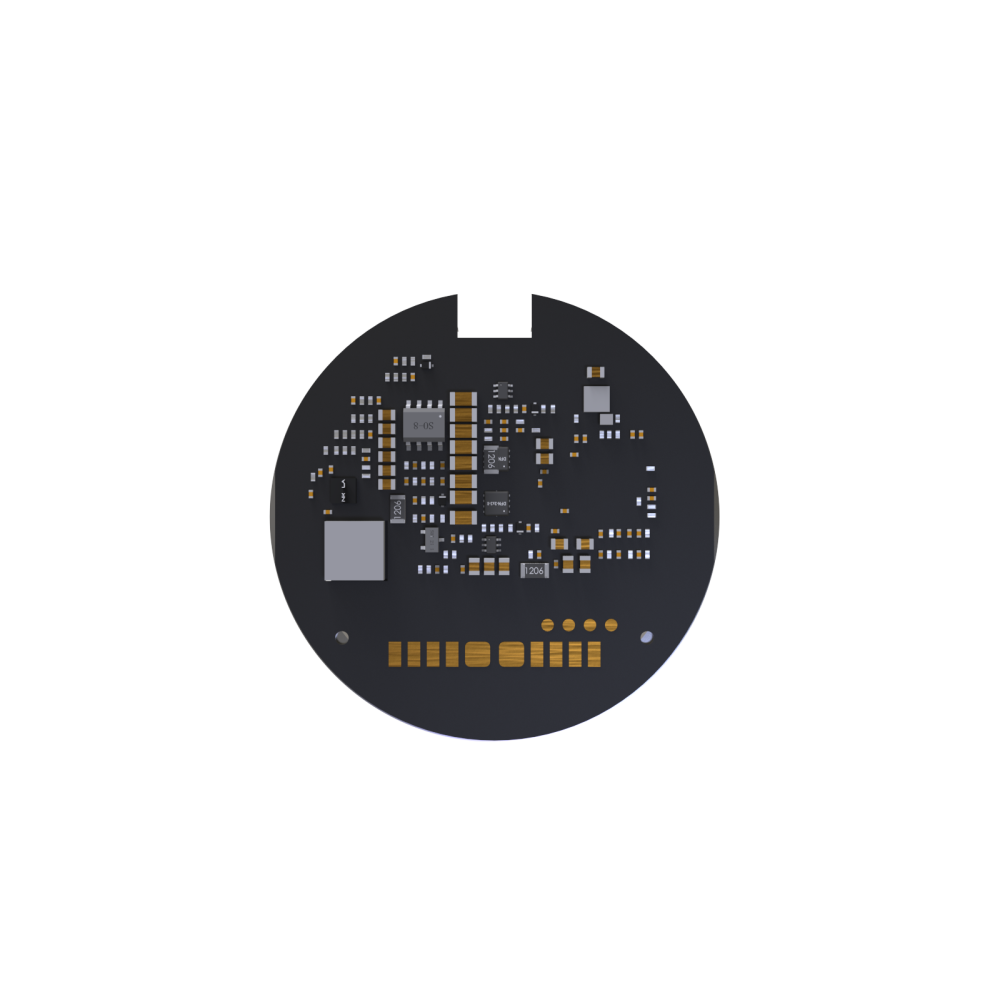

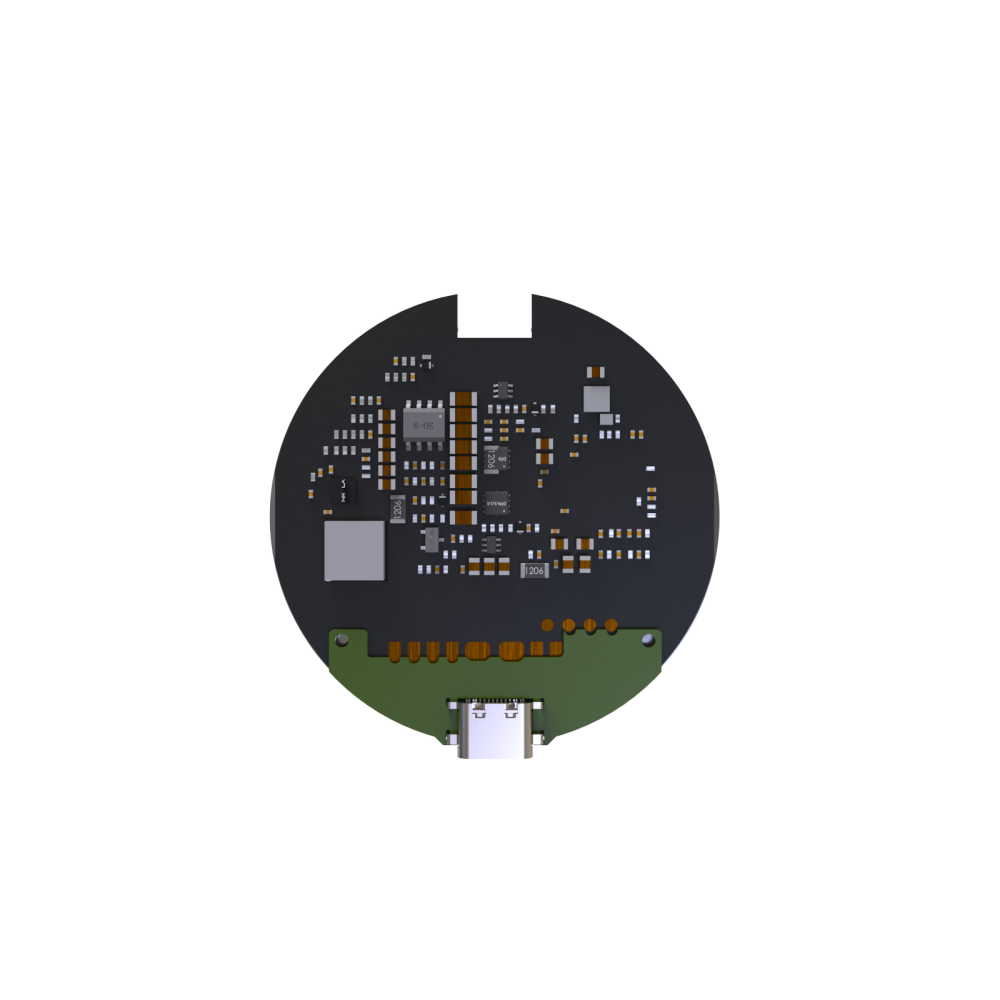

7 U15QT-6156B1+typeC 7 U15QT-6156B1+typeC_正 7 U15QT-6156A1_背面 7 U15QT-6156A1_正面
7 U15QT-6156B1+typeC 7 U15QT-6156B1+typeC_正 7 U15QT-6156A1_背面 7 U15QT-6156A1_正面

Qi EPP 15W+PPDE 10W TX 磁吸模組 (6156)

  • 兼容Qi 1.2.4 BPP 5W/ iphone 7.5W/ PPDE 10W/ EPP 15W 無線充電
  • 輸入：DC 9V/ 2.22A, 5V/ 3A
  • 輸出：DC 15W MAX.
  • 尺寸：54.24*4.7mm / 54.24*6.58mm
  • 重量：23.8 ± 2g / 25 ± 2g

Product Specification

PartNumberPower input
Qi standard
Output power
DownloadInquiry
U15QT-6156A120W1.2.X15W 3D SPICE
U15QT-6156B1 (With USB-C Port)20W1.2.X15W SPICE
U15QT-6156A1
20W
1.2.X
15W
3D SPICE
U15QT-6156B1 (With USB-C Port)
20W
1.2.X
15W
SPICE
