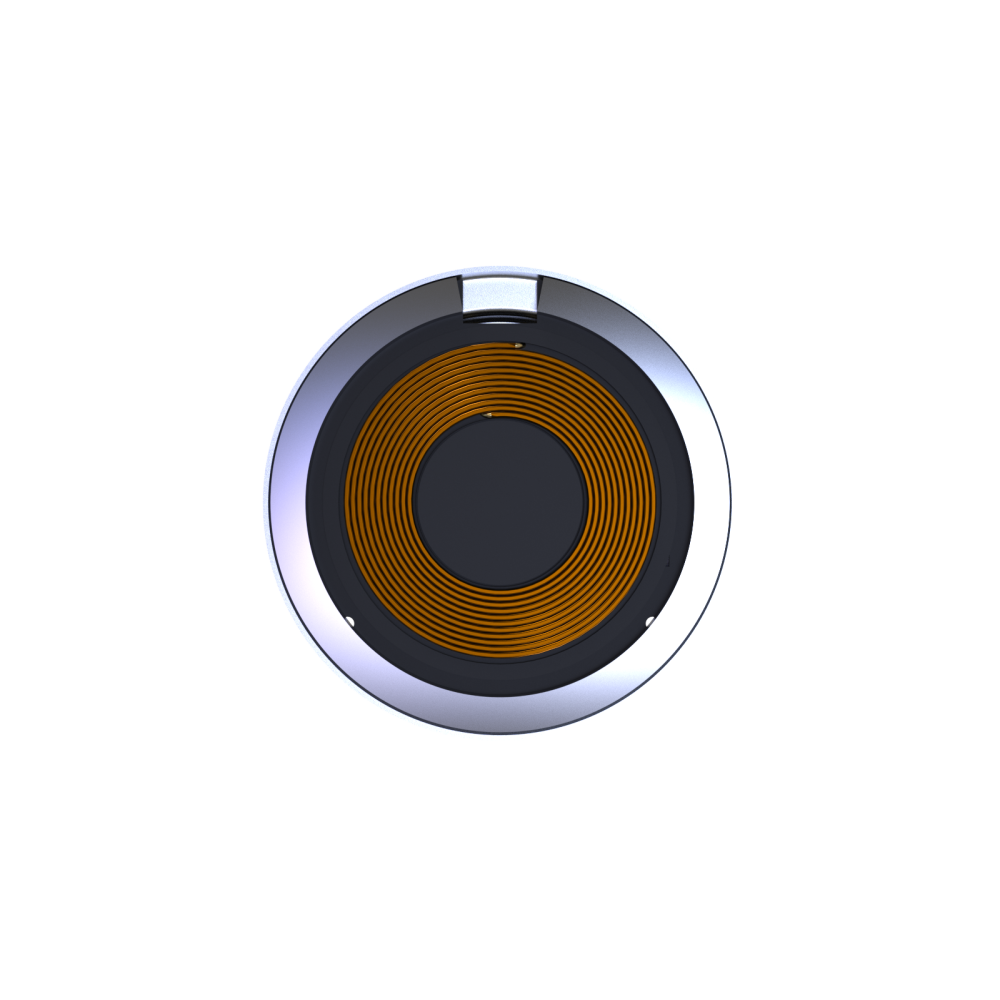

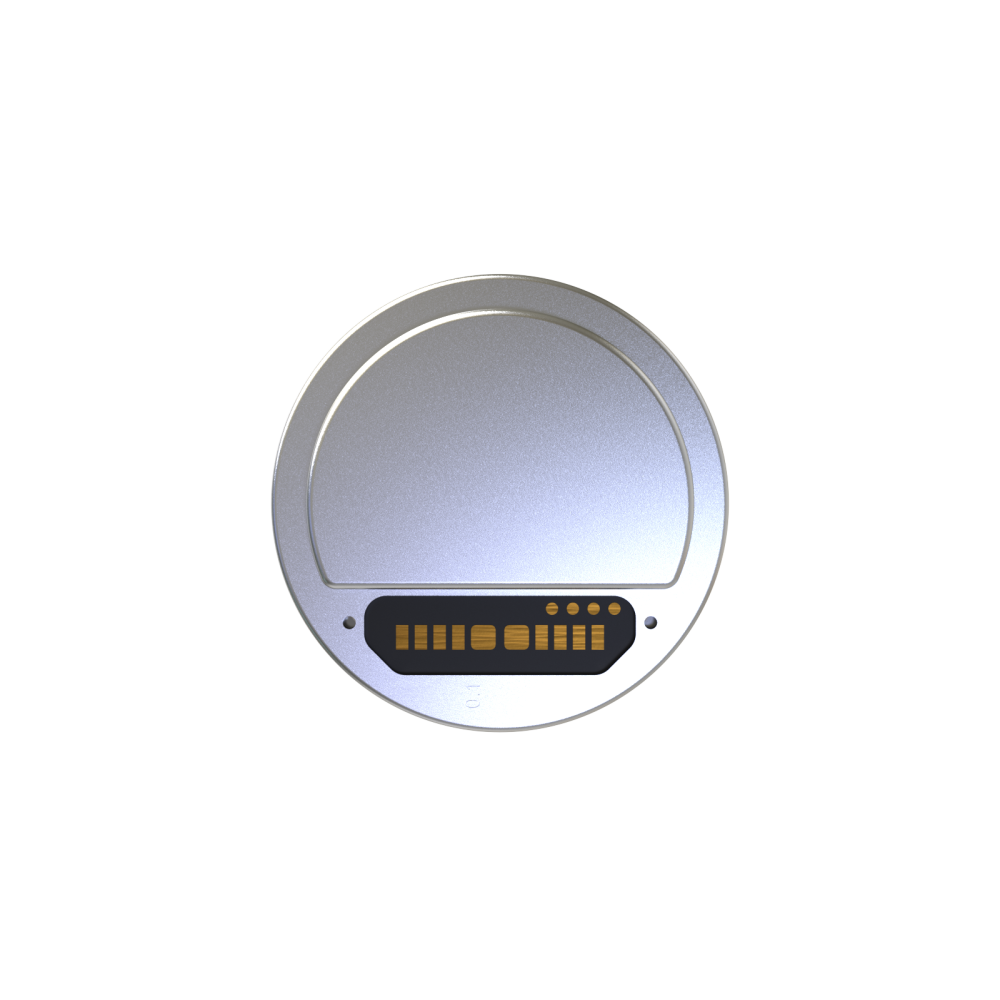

Qi2 15W MPP 快充 TX Magnetic 模組 4N強磁吸附 (6131)

Qi2 15W MPP 快充 TX Magnetic 模組 4N強磁吸附 (6131)

  • 輸入協議：支援 BC1.2 / PD / QC 協議功能
  • 模組特性：可整合至具備 Qi 無線充電功能的任何裝置
  • 輸入規格：USB-C 模式 9V-2.22A / 5V-3A，DC 模式 9V ≥2.22A / 5V ≥2.4A
  • 輸出模式：MPP 15W / EPP 15W / Samsung 10W / BPP 5W / Apple 7.5W
  • 材質：TX 傳輸模組
  • 尺寸：模組直徑 Φ58.6 mm，高度 7 mm
  • 重量：35.4 ± 2g

Product Specification

PartNumberInput Voltage(V)
Output Voltage (V)
Output Current (A)
Topology
Application
DownloadInquiry
QI2QT-6131A1C1-XB-15-95-92.4Full-BridgeWireless Power Charger
QI2QT-6131A1C1-XW-15-95-92.4Full-BridgeWireless Power Charger
QI2QT-6131B15-95-92.4Full-BridgeWireless Power Charger
QI2QT-6131C15-95-92.4Full-BridgeWireless Power Charger
QI2QT-6131A1C1-XB-1
5-9
5-9
2.4
Full-Bridge
Wireless Power Charger
QI2QT-6131A1C1-XW-1
5-9
5-9
2.4
Full-Bridge
Wireless Power Charger
QI2QT-6131B1
5-9
5-9
2.4
Full-Bridge
Wireless Power Charger
QI2QT-6131C1
5-9
5-9
2.4
Full-Bridge
Wireless Power Charger
