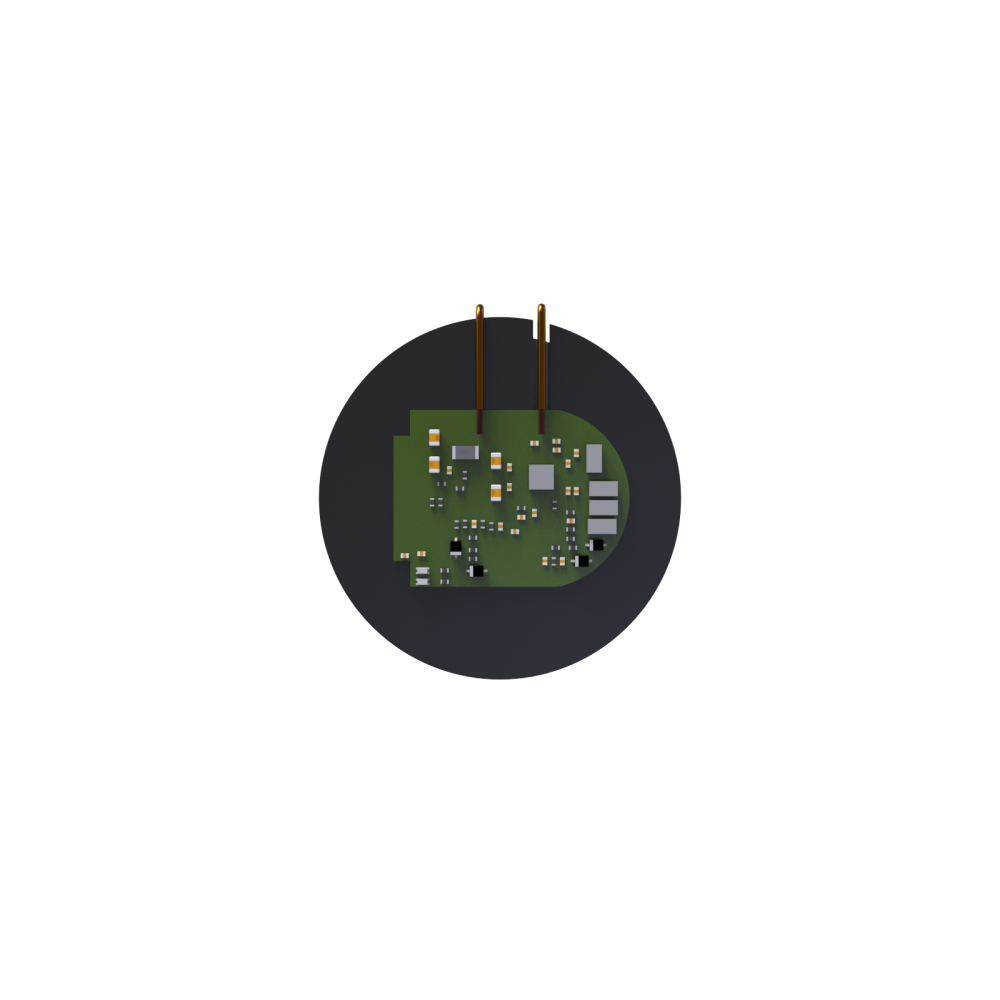

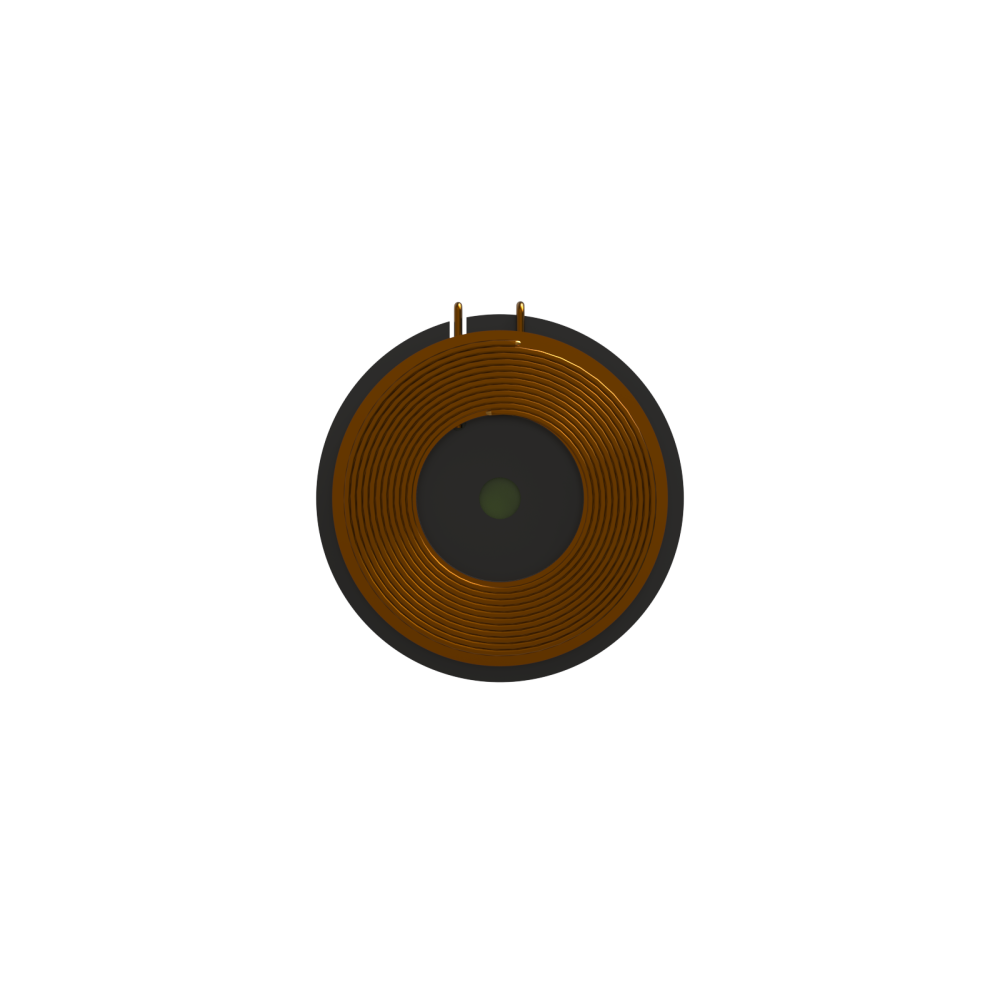

Qi 10W/7.5W Magnetic Fast Charge wireless charging TX module
U15QT-6064 is a WPC1.2.4 Qi fast charge wireless charging platform: Its transmission efficiency is up to 70%±5% and can provide up to 10W transmission capacity. It enables powering or charging for any WPC-Qi certified products. With fast charging function for Samsung®and iPhone®mobile phone.
It adopts intelligent identification system while its transmitter and receiver unit adopts UART (Universal asynchronous receiver/ transmitter) encrypted transmission control signal which is stipulated by WPC1.2.4 The console will process the corresponding power adjustment based on the encoding of the receiving unit. This module has fulfilled the WPC1.2.4 Qi requirement and is certified by Qi.
Multiple LED indication scheme available for options
Product Specification
| PartNumber | Input Voltage(V) | Output Voltage (V) | Topology | Application | Download | Inquiry |
|---|---|---|---|---|---|---|
UNIQT-0039A | 5-9 | 5-12 | Full-Bridge | Wireless Power Charger | Catalog |
Application
Since the early 20th century, researchers have been looking for an efficient way to transmit electricity without a wire connection. When the first smartphone was released in 2007, it attracted widespread industry attention and sparked the consumer electronics revolution. At present, modern wireless technology power transmission has a rich history of research and development and prominent commercialization, of which the WPC Alliance has played an important role in integration. In addition to the consumer market, LinkCom also invests in R&D for industrial and automotive grade applications. Currently, the maximum transmission power supply can reach 300W. Welcome to contact us.
