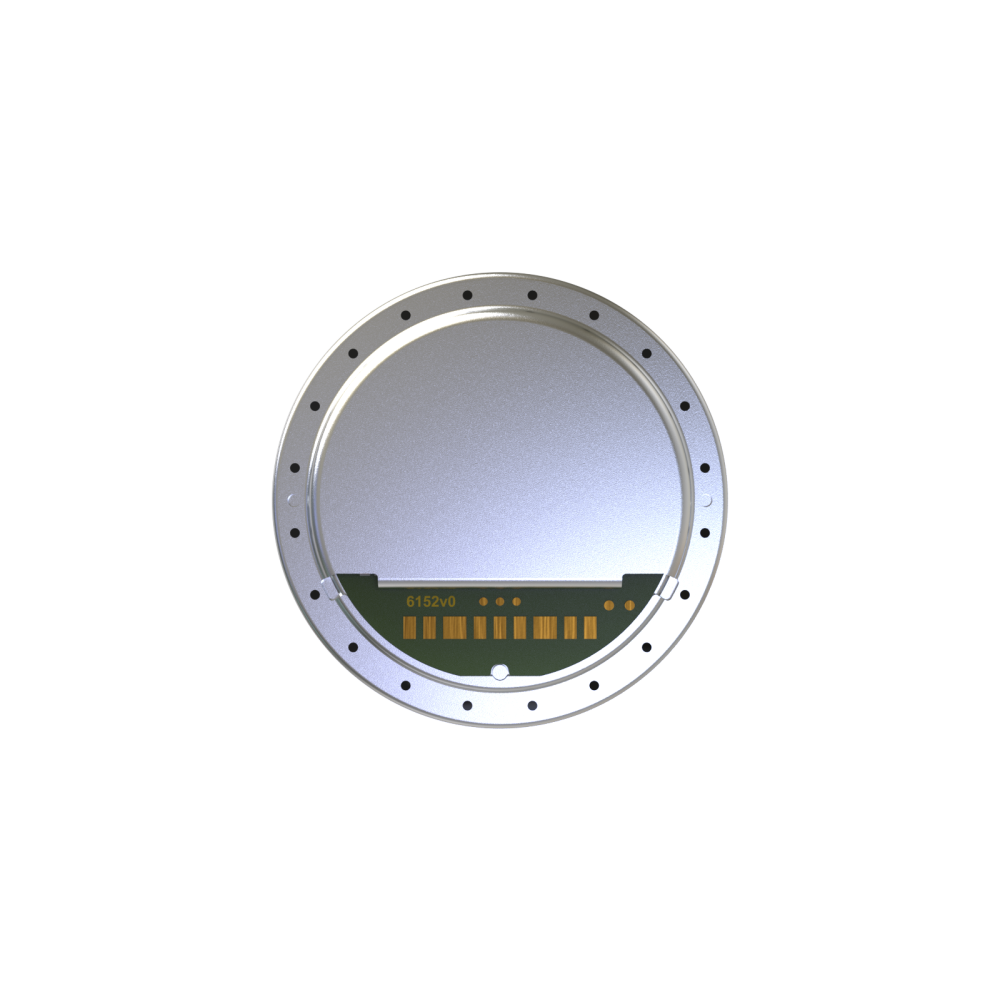

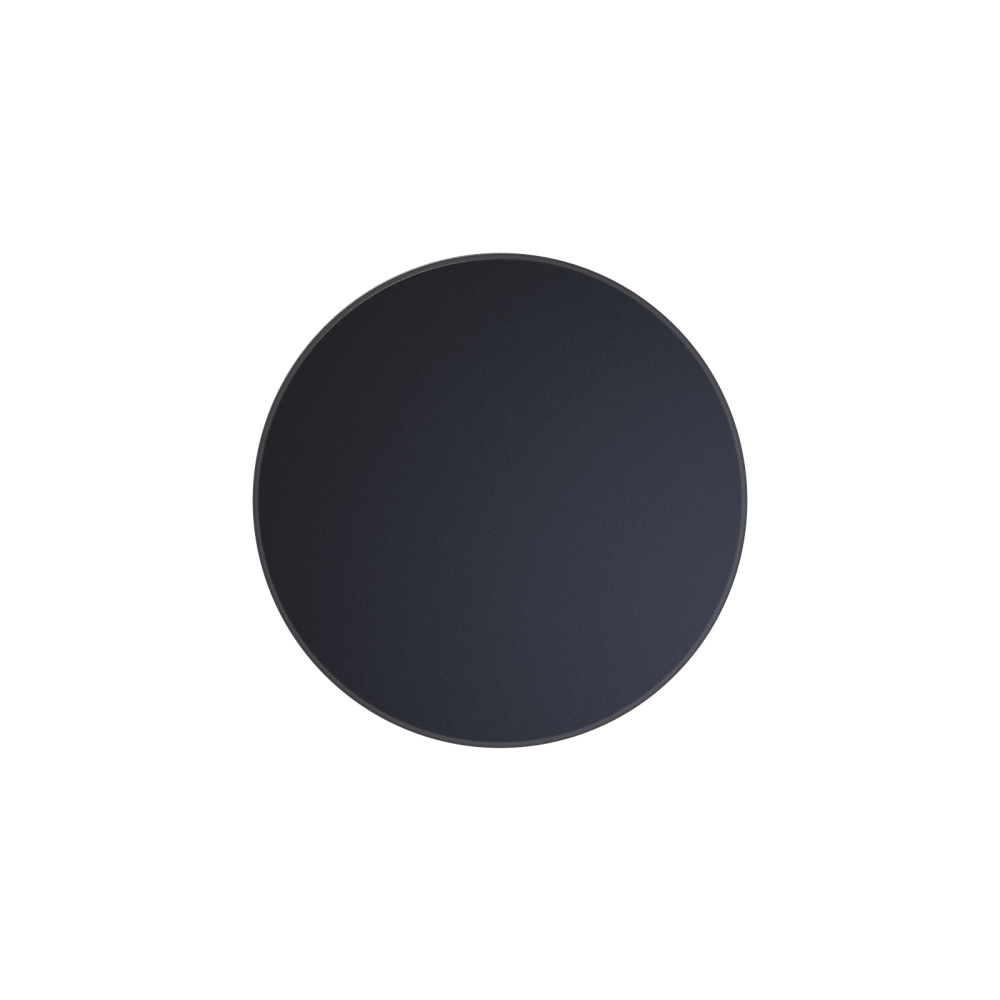

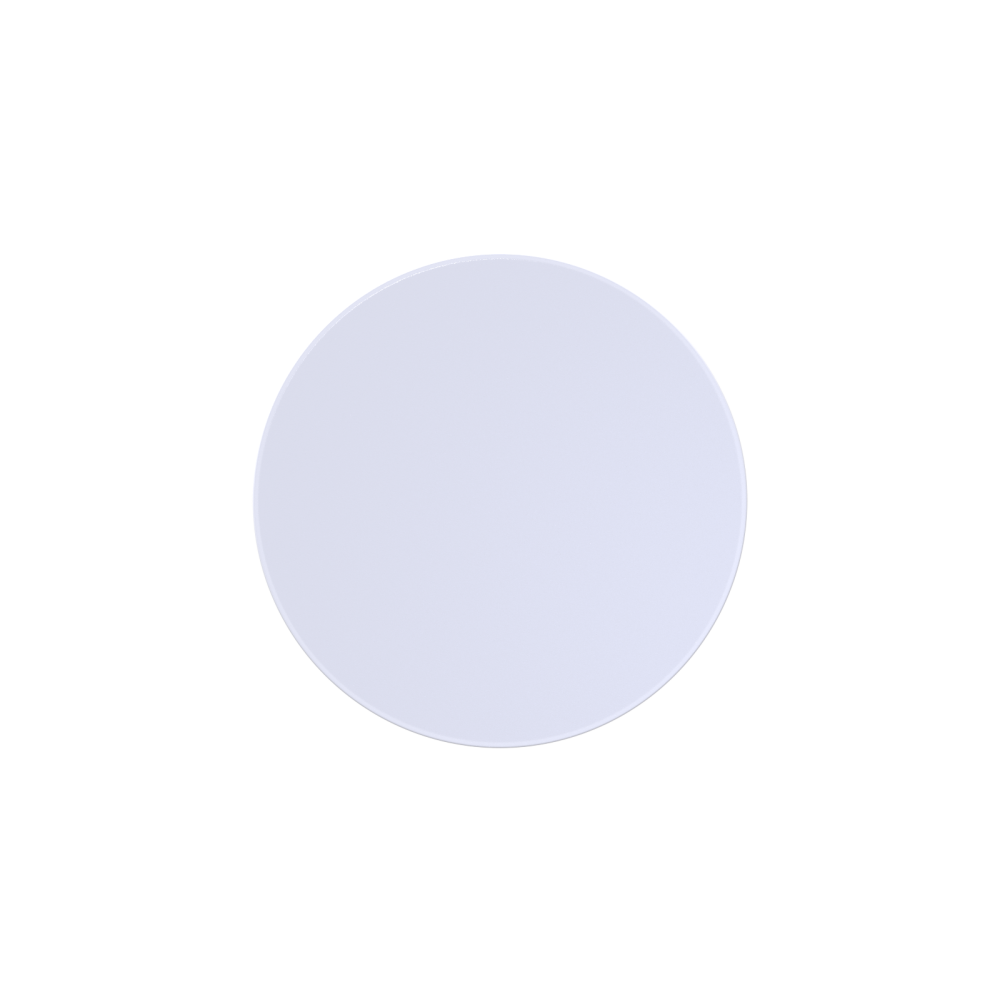

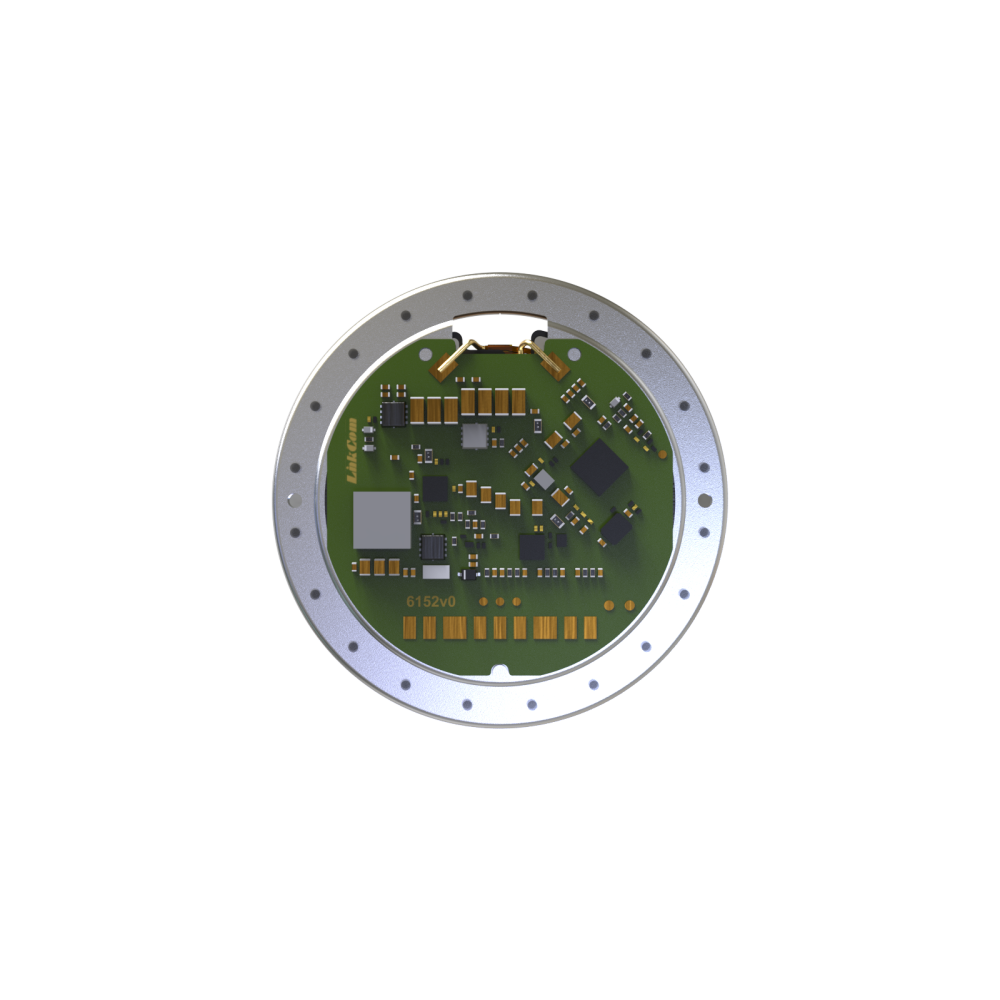

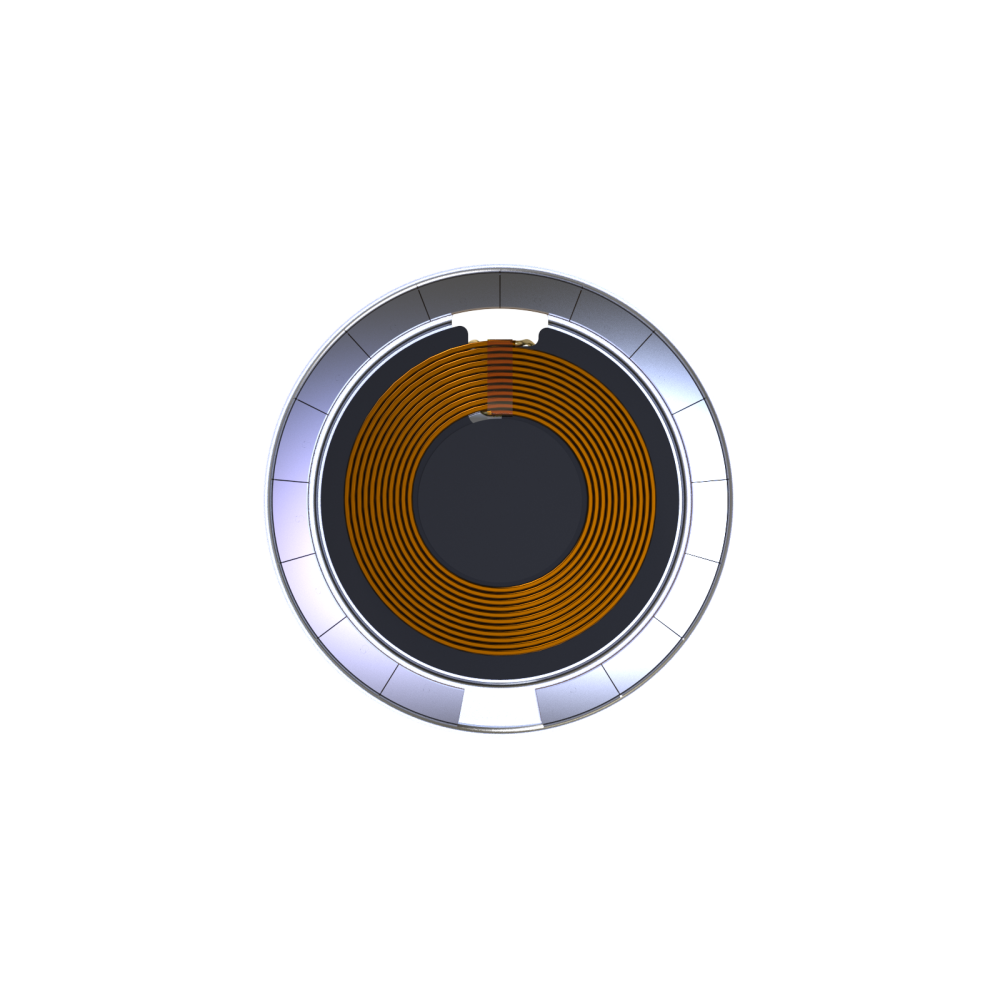

3 QI2QT-6152 _背面 待申請料號(無底殼) 3 QI2QT-6152 正面(白色面蓋) 3 QI2QT-6152 正面(無面蓋) 3 QI2QT-6152 正面(黑色面蓋) 3 QI2QT-6152A1_背面(有底殼)
3 QI2QT-6152 _背面 待申請料號(無底殼) 3 QI2QT-6152 正面(白色面蓋) 3 QI2QT-6152 正面(無面蓋) 3 QI2QT-6152 正面(黑色面蓋) 3 QI2QT-6152A1_背面(有底殼)

Qi 2.0 MPP+ EPP 15W TX Magnetic Module (7-9N)

  • Input Protocol : BC1.2/PD/QC Protocol function
  • Input: USB-C Mode 9V-2.22A/5V-3A , DC mode: 9V ≥2.22A/5V ≥2.4A
  • Output mode: MPP 15W / EPP 15W / Samsung 10W / BPP 5W
  • Dimension: Module：Ø58.56 x 7.88 / Ø56.2 x 6.97 / Ø56.2 x 5.68mm
  • Weight:36 ± 2g

Product Specification

PartNumberPower input
Qi standard
wireless charging mode
Output power
DownloadInquiry
QI2QT-6152A1C1-XB-1 (Black Cover)20W2.0MPP 15W / EPP 15W / Samsung 10W / BPP 5W15W SPICE
QI2QT-6152A1C1-XW-1 (White Cover)20W2.0MPP 15W / EPP 15W / Samsung 10W / BPP 5W15W SPICE
QI2QT-6152B1 (Without Cover, With button shell)20W2.0MPP 15W / EPP 15W / Samsung 10W / BPP 5W15W SPICE
QI2QT-6152C1 (Without Cover, With button shell)20W2.0MPP 15W / EPP 15W / Samsung 10W / BPP 5W15W SPICE
QI2QT-6152A1C1-XB-1 (Black Cover)
20W
2.0
MPP 15W / EPP 15W / Samsung 10W / BPP 5W
15W
SPICE
QI2QT-6152A1C1-XW-1 (White Cover)
20W
2.0
MPP 15W / EPP 15W / Samsung 10W / BPP 5W
15W
SPICE
QI2QT-6152B1 (Without Cover, With button shell)
20W
2.0
MPP 15W / EPP 15W / Samsung 10W / BPP 5W
15W
SPICE
QI2QT-6152C1 (Without Cover, With button shell)
20W
2.0
MPP 15W / EPP 15W / Samsung 10W / BPP 5W
15W
SPICE
